Structure Design
Structural Integrity & Load Calculation Report for Solar Mounting Systems
India
Project Overview

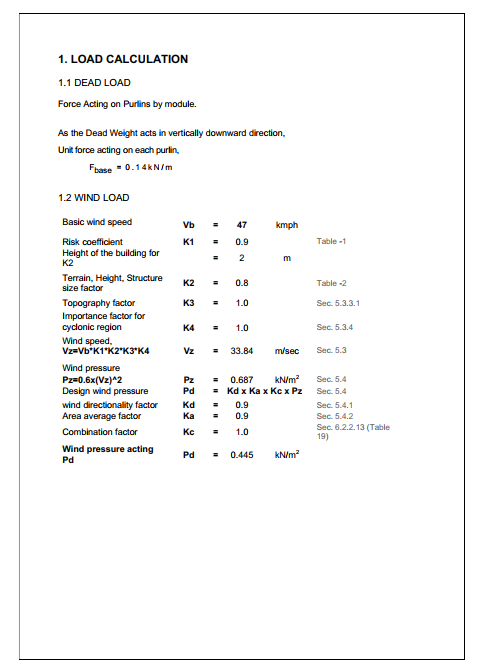

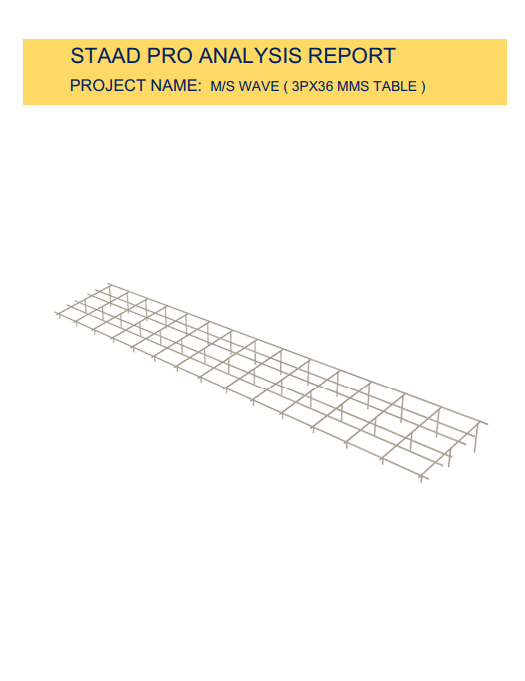

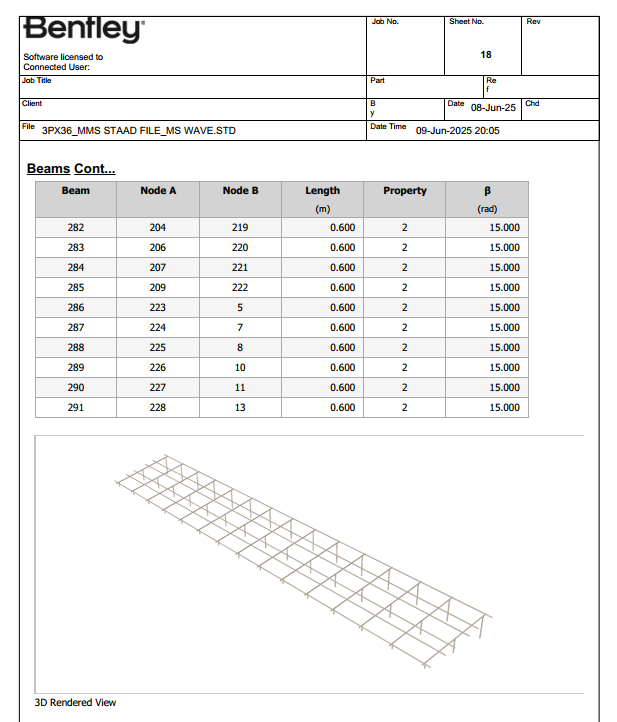

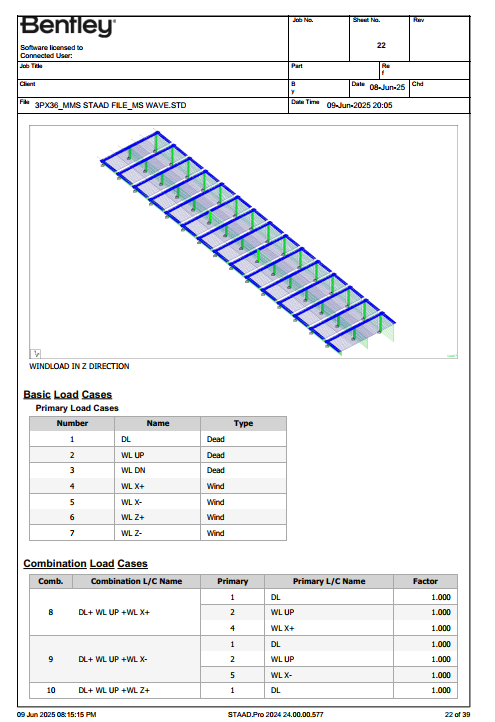

Prepared an end-to-end structural stability report for solar mounting structures (MMS) and building substructures. Performed finite element and sectional stress calculations against regional wind speeds, dead loads, and seismic factors to determine optimal member thickness, anchor bolting, and deflection compliance, ensuring safe, certified, and cost-effective structural execution
Services Delivered
Technical Specs
- Capacity: NA
- Location: India
- Category: Structure Design
- Completed: 2026-09-06
Need a similar design?
Outsource your drafting, electrical SLDs, and load calculations to our engineering team.
Get Free ConsultationDesign Drawing Gallery
Click on any image to view details of our engineering layouts and schematics.
